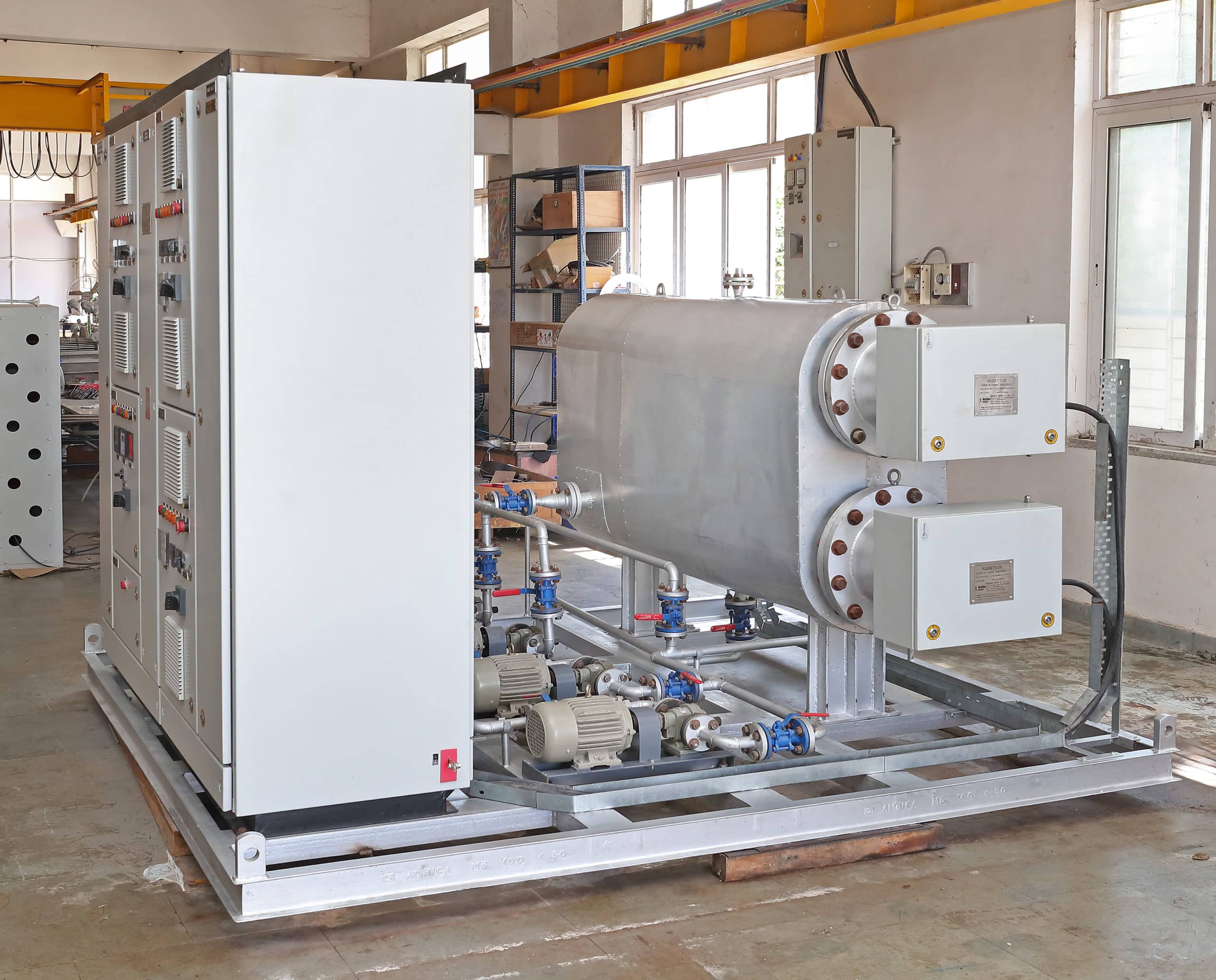

Fuel Oil Circulation Heating System

Control Panel:

• 1.NEMA 4 Control Panel
• 2.Purge & Pressurization Enclosure Protection System
• 3.TEC-4100 PID Temperature Controller
• 4.TEC-410 FM High Limit Control
• 5.PPR-1800 Videographic Data Logger
• 6.Safety Contactors for Over-temperature, Over-pressure and Low-flow Conditions
• 7.Intrinsically Safe Sensor Barriers

Circulation Heater:

• 1.90KW, 480V, 3-Phase Heater
• 2.NEMA 4 Terminal Housing
• 3.Flow Rate: 80 GPM
• 4.Operating Pressure: 0-150 PSIG
• 5.Max. Operating Temperature: 300°F/148°C
