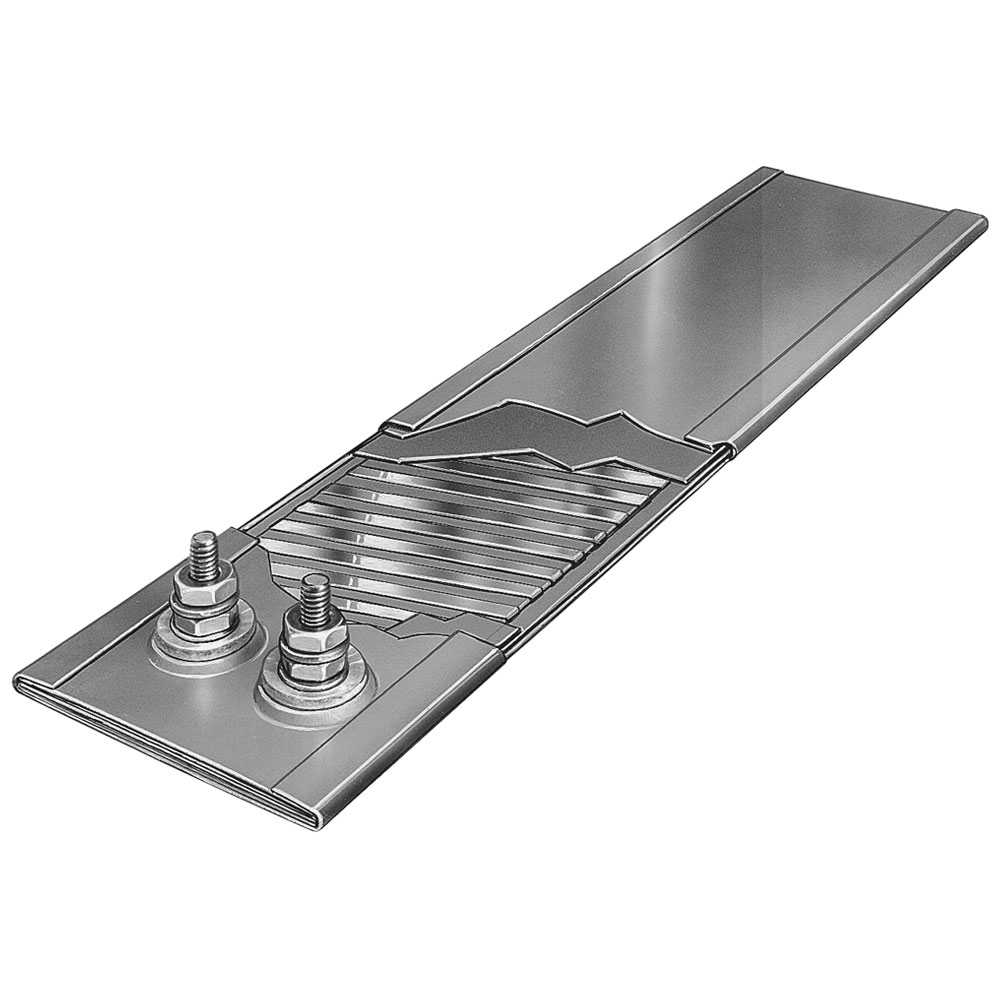

Mica Insulated strip heaters are an economical, practical and reliable heat source capable of providing uniform heat transfer for sheath temperatures up to 900°F (482°C). For corrosive atmospheres stainless steel sheath is available.

Specially treated rust-resistant steel sheath casing provides physical strength, high emissivity and good thermal conductivity for sheath temperatures up to 900°F (480°C). For corrosive atmospheres stainless steel sheath is available. Specially selected mica grade and thickness is used to insulate the windings, providing excellent thermal conductivity and dielectric strength. A nickel-chrome resistance ribbon wire size is properly engineered to achieve the best combination of wire gauge and spacing between turns, thereby providing the lowest winding temperature possible. The ribbon wire is wound on a specially selected Mica Strip, providing even heat distribution for maximum heater life.

MICA INSULATED STRIP HEATERS SPECIFICATIONS

Mica Insulated with Mounting Tabs

Mica Insulated without Mounting Tabs

ELECTRICAL TERMINATIONS

Type B: Button Terminals at one end

Low-profile 10-32 button terminals with binding head screws. Same location and minimum width requirements as types T1, T2 and T3. 6-32 threads available.

Type B1: Terminals at opposite ends (see T1)
Type B2: Terminals same end (see T2)
Type B3: Terminals same end (shown)

Type L1: Flexible Lead Wires at Top

Flexible lead wire exiting from the top through a brass eyelet. 10" long leads standard; if longer leads are required, specify.
Minimum Width required is 7/8".

Type L2: Flexible Lead Wire at Heater End

Flexible lead wire exiting same end. 10" long leads standard; if longer leads are required, specify.
Minimum Width required is 1-1/8".

Type L3: Flexible Lead Wire at Each End

Flexible lead wire exiting at opposite ends. 10" long leads standard; if longer leads are required, specify.
Minimum Width required is 3/4".
